New contour path

With the function New contour path, the existing laser machining on a contour path can be deleted. The machining is then repositioned.

This function can be found here:

  • Lasering > Change > New path
  • Combi > Change > New path
  • Nesting > Change > Correction > Lead-in path

Delete laser machining on contour path

  1. Click the New contour path button.
  1. If you want to change the parameters for lasering and cutting, click Cutting parameters.
  1. Configure your desired settings.
  1. Click on OK.
  • The parameters for lasering and cutting are changed.
  1. Select the contour you want to change.
  • The current laser machining is deleted and must be reset.

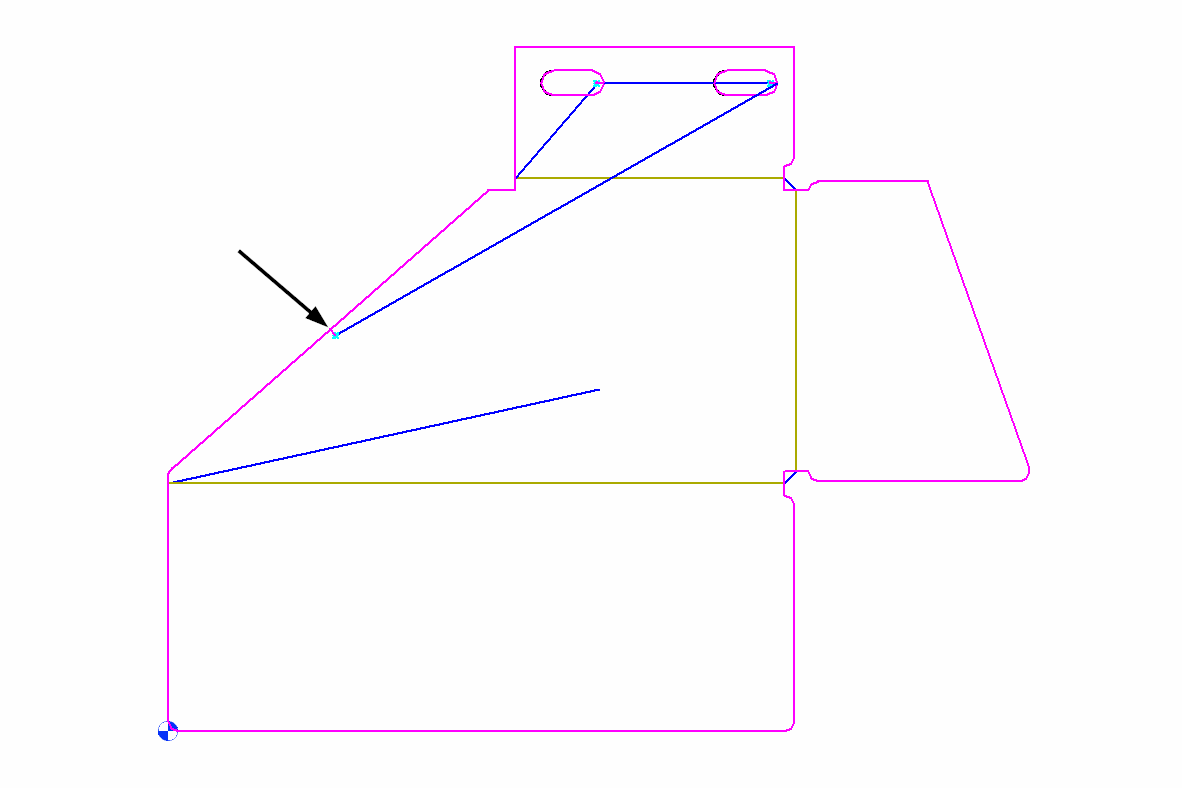

  1. Position the new start element with the left mouse button.
  1. Confirm the position with the right mouse button.
  1. Click Close.
  • The function is ended and the changes are applied.
