Micro-weld

TASK

Programming a spot weld.

146E
146E

EXECUTION

  1. Determine:
    - Pierce type: 5 (soft) or 6 (hard)
    - Precut length
    - Path offset
    - Overlap
    - Reduction length

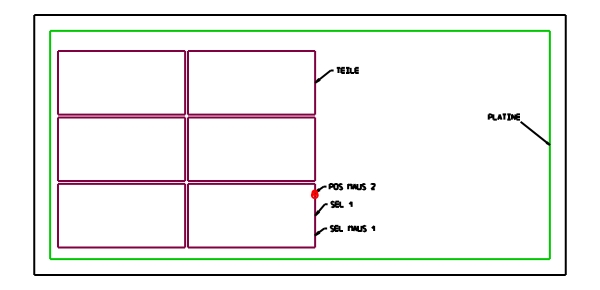

  1. Select a machining line.
  1. Test the lead-in path with mouse button 1.
  1. Set the position with mouse button 2.
