Set support

TASK

Determination of the position of the clamping claws.

1202
1202

EXECUTION

  1. After selecting the function with mouse button 1, the position of the clamping claws can be determined.
  1. Activate and deactivate the clamping groups: YES or NO
  1. Input of the position of the individual clamping claws.

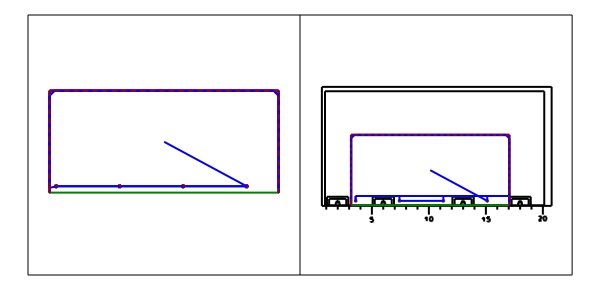

  1. Representation of the clamping claws.

NOTE

The popups must be confirmed with mouse button 3.

The MBAS file corresponding to the machine (SOURCE) determines the automatic or manual position of the clamping claws.

To determine the parameters change /u/pn/config/mbasis/MBASxx.

The user can draw the claws with the appropriate geometry and save them with the Create system geometry function under the name CLAMP.
