Triangle with IST

TASK

Generation of an ACTUAL data set for a Salvagnini machine.

1819
1819

EXECUTION

  1. Input of parameters:
    - Direction of nibbling sequence (W1/W2)
    - Nibbling type code (Z1/Z2)
    - Overlap: Tool overlap of two strokes
    - Protrusion: Protrusion from the contour according to the selection of shorter or longer line.
    - Orientation to shorter or longer line: Selection whether shorter or longer line is decisive for the length of machining.

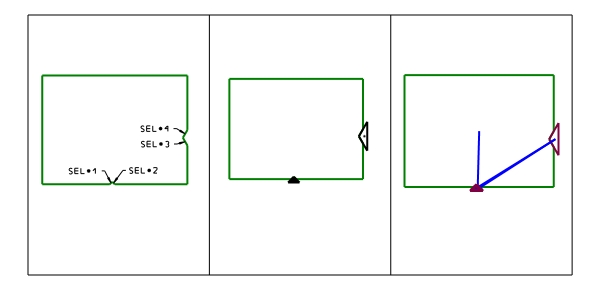

  1. Selection of two lines.

NOTE

The punched out surface always results in an isosceles triangle. The tool must consist of an isosceles triangle of three lines and have the same opening angle as the surface to be machined. It is automatically determined from the special tool library.
